Modular
Vault Series
Interlocking pre-engineered panels, built in any room or free-standing outside, and scaled by the panel as your mission grows.
ICD/ICS 705 · Modular · Containerized
Modular and containerized SCIFs
A Centurion Vault Series SCIF is your mission’s frontline protection: built from modular panels, and scaled by the panel as the mission grows. The Centurion Sentinel Series is the containerized line.
- Office / high-bay applications
- and free-standing outdoor applications
The facility
Our fully compliant ICD-705 SCIFs are designed for now and in the future
With the threat of cyber attacks, foreign espionage, global terrorism and industrial espionage, our nation and its industrial base are under constant attack. A Centurion SCIF is built to your design criteria to keep what matters inside it.
Containerized
Sentinel Series
A SCIF built from highly modified 20 ft and 40 ft ISO containers: rugged, mobile, rapidly deployable and highly secure.
Modular
Vault Series

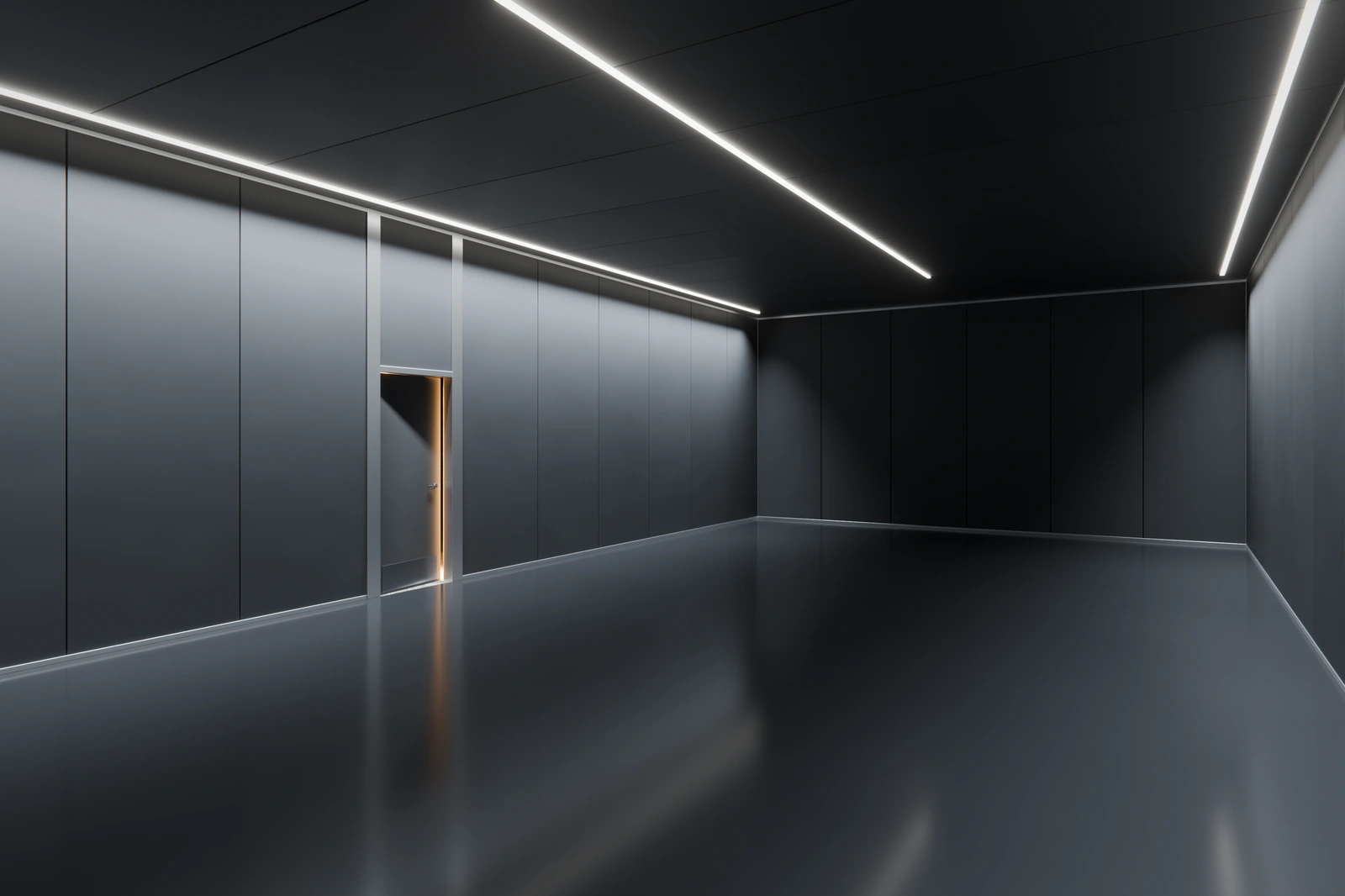

The Centurion Vault Series is the modular line, built from interlocking pre-engineered panels in any room or free-standing outside.
Modular · Vault Series
Fully scalable modular SCIFs
The costs associated with future right-sizing are eliminated. By adding more panels, we scale to your needs as your mission expands.
A Centurion Vault Series SCIF is your mission’s frontline protection: a Sensitive Compartmented Information Facility built from interlocking pre-engineered panels rather than from a building. Cyber attack, foreign espionage, global terrorism and industrial espionage keep our nation and its industrial base under constant attack, and a Vault Series facility is built to your design criteria to keep what matters inside it.
Our solution is highly secure, pre-engineered panels that interlock based on your design criteria, creating a panelized system of modular construction designed to withstand and exceed all ICD 705-705.1 requirements, while being exceedingly fast to erect, architecture agnostic, budget friendly and re-deployable should your mission change.
A panelized build runs fabrication in parallel with site activities, which is where its schedule advantage over traditional construction comes from.

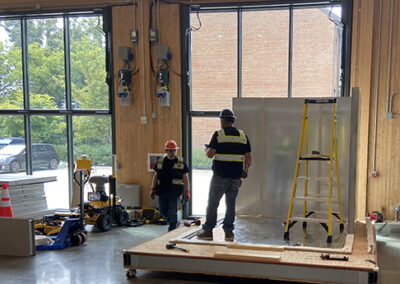

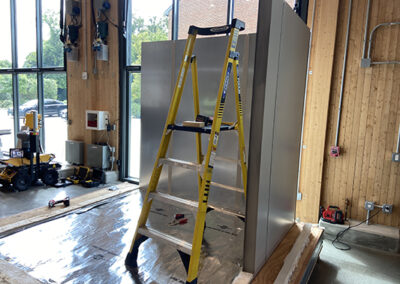

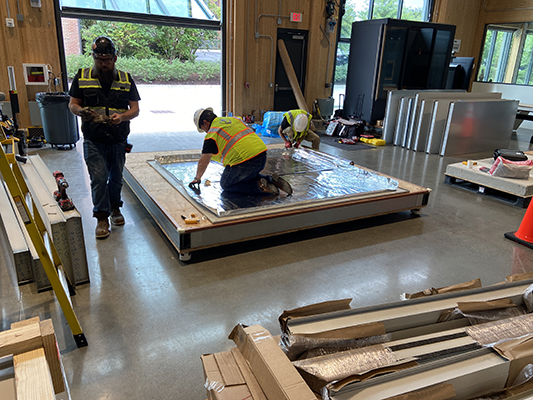

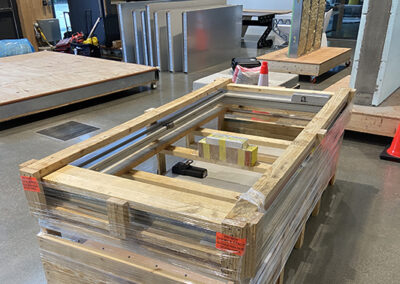

Modular · Assembly

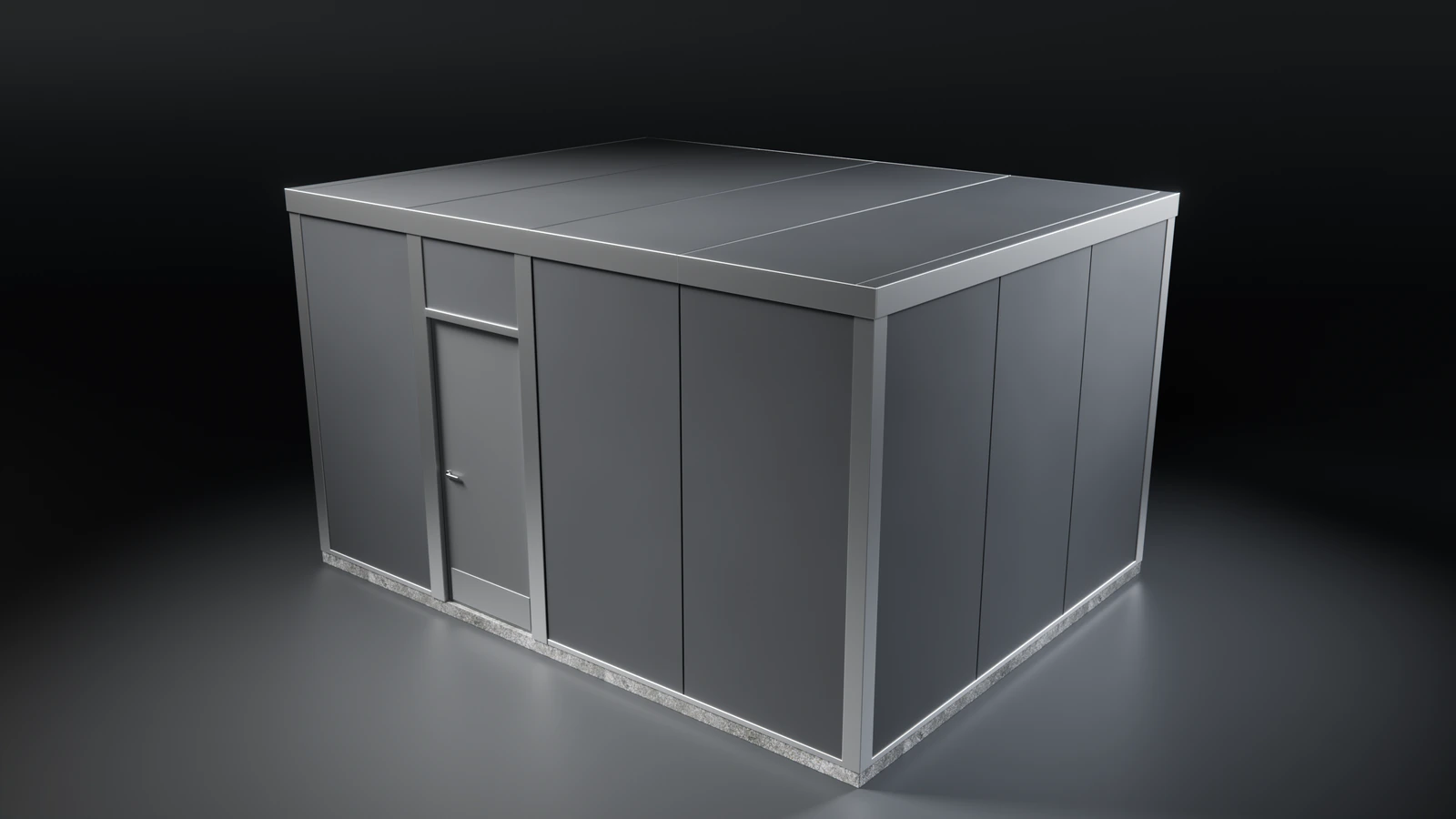

Built by the panel
The Vault Series: assembled to your exact dimensions, panel by panel, and engineered with enhanced sound and signal attenuation as well as forced entry.

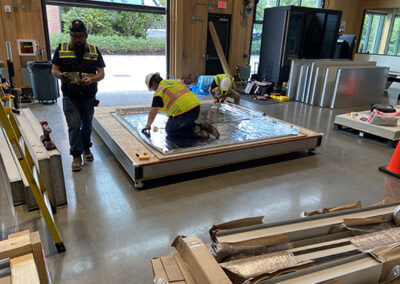

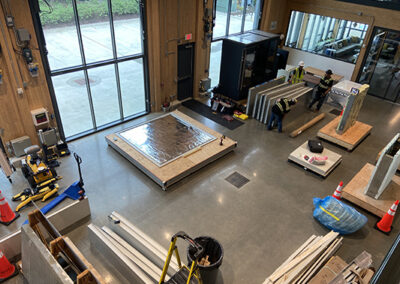

- Floor

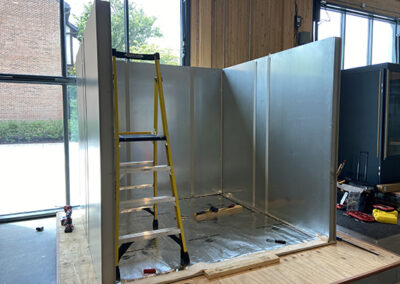

- Wall panels, module by module
- Ceiling

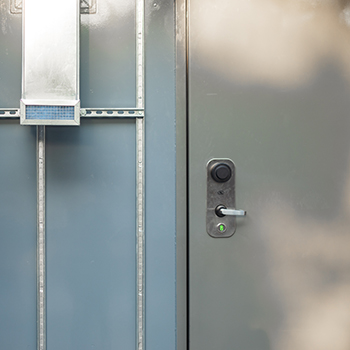

- Door
- Room closed
Modular · Scalability
Vault Series scalability features
A Vault Series facility scales up, scales down and moves, because the panel is the unit rather than the building.
Panels
- 4 ft standard panel module
- Custom widths and heights, built to your dimensions
- Architecture agnostic. Build in any room, anywhere.
- Free-standing outside structures
- Scalable and repeatable testing results
Reconfigurable
- If your mission scales up, add more panels
- If your mission scales down, remove panels to free up floor space
- Design engineers on staff to design or re-design your facility
Relocatable
- If your mission changes location, your secure space travels with you
- The same installation team that erected your facility relocates it
- Re-certification and re-accreditation services and reports

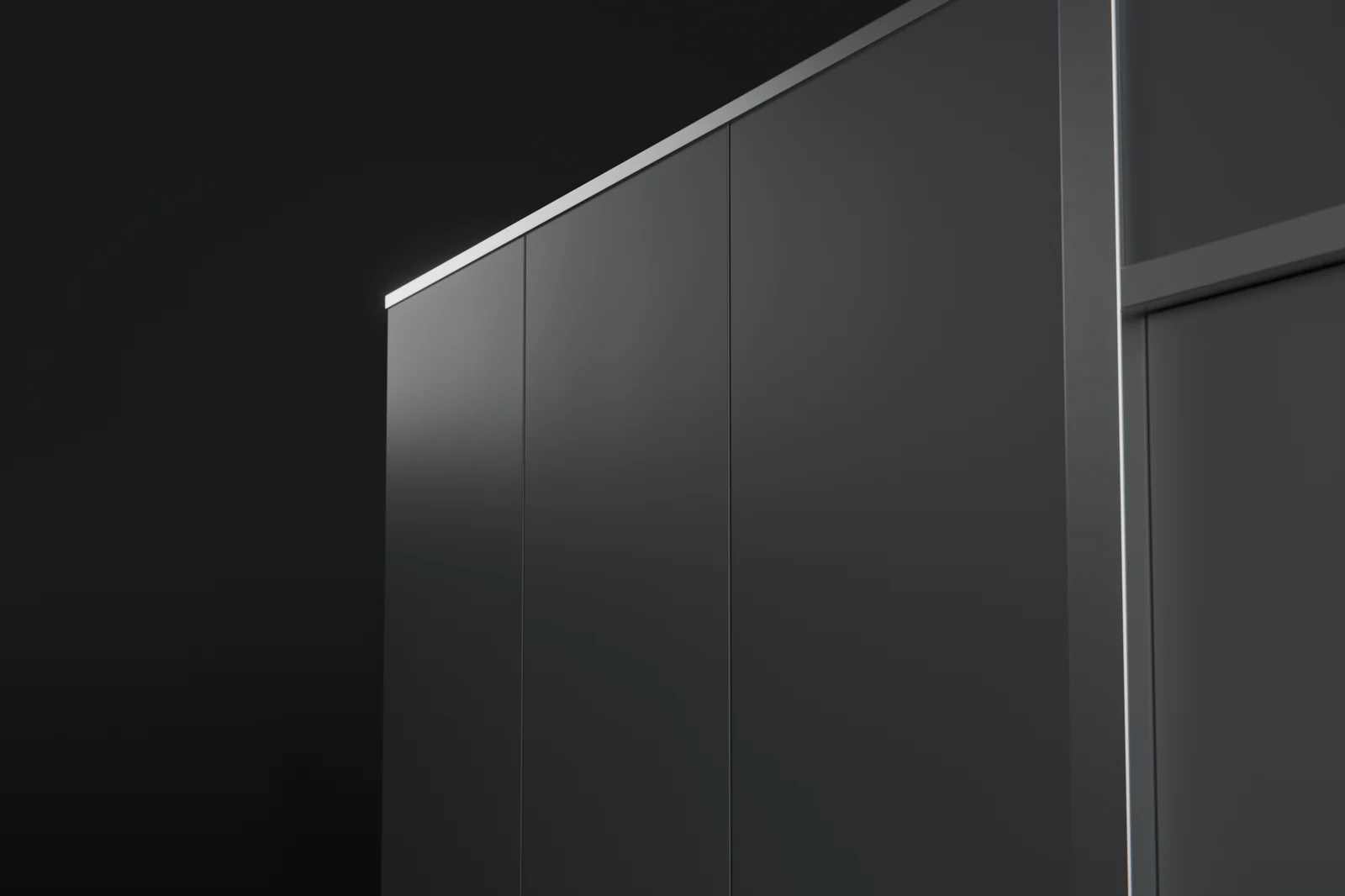

Modular · The wall
What a Centurion wall does
An intact wall, and the four things it is there to do.
Vault Series wall panel minimums and features
- Minimum 60 dB RF attenuation
- Minimum STC 53
- Enhanced force protection
- Standard and custom architectural finishes
Modular · The figures
What the Vault Series figures say
Standard
4 ft
Vault Series panel module
-
ICD/ICS 705
compliant secure facilities
Standard
TEMPEST
Vault Series feature, shielding tested per IEEE 299
Figures as published on this site.
Containerized
Sentinel Series
The Centurion Sentinel Series is the containerized line, built from 20 or 40 ft ISO containers.
Containerized · Sentinel Series

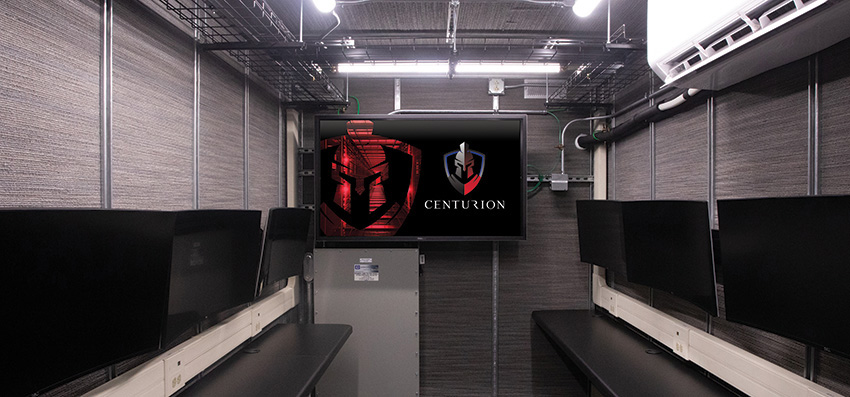

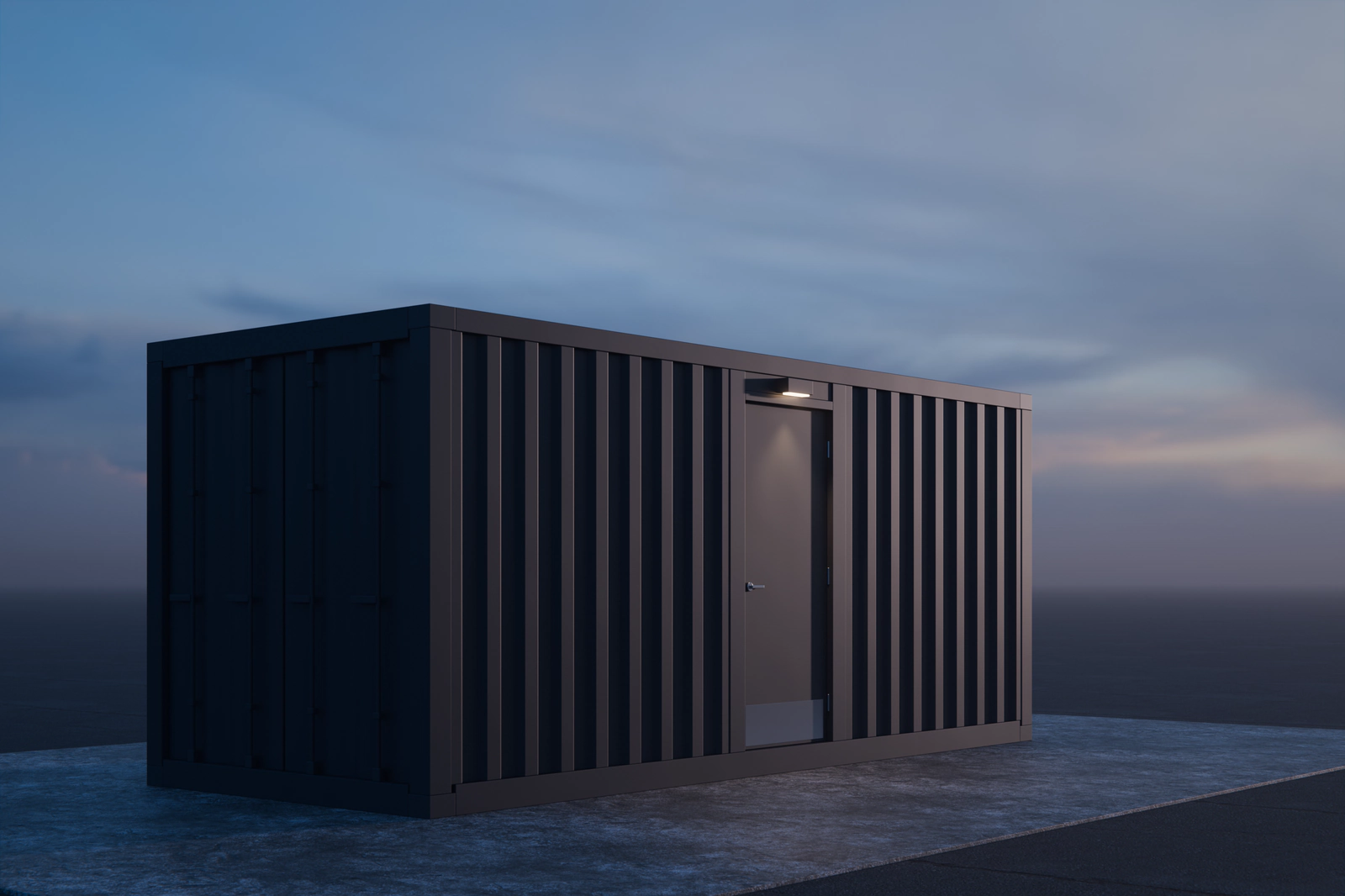

Centurion Sentinel Series SCIFs
The Centurion Sentinel Series is our containerized line: a Sensitive Compartmented Information Facility built from an ISO container, and rugged, mobile, rapidly deployable and highly secure with it.

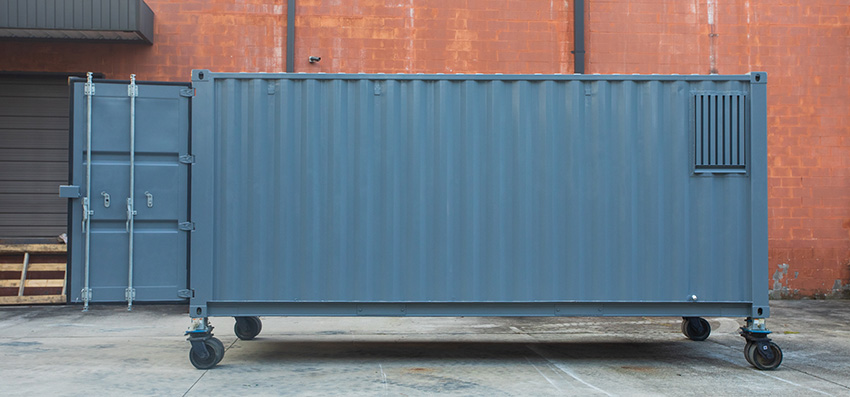

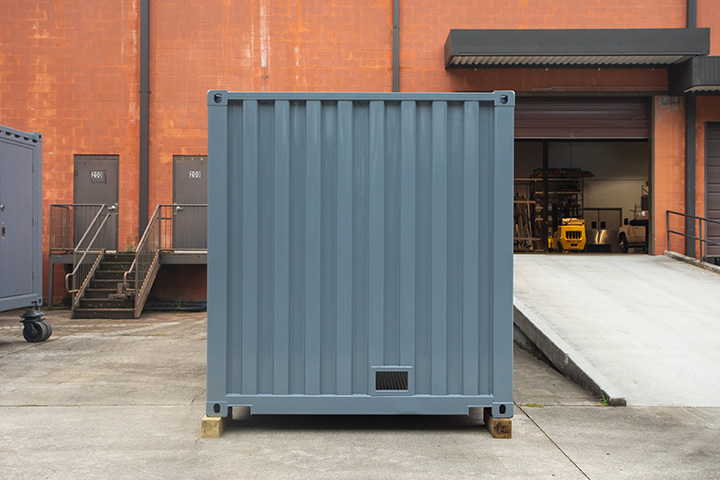

The Centurion Sentinel Series T-SCIFs are constructed from 20 ft or 40 ft ISO containers. A 1/4 in tube steel frame is sheathed in contiguously welded 1/4 in carbon steel, and every penetration is handled with dielectric breaks, waveguides and z-ducting.

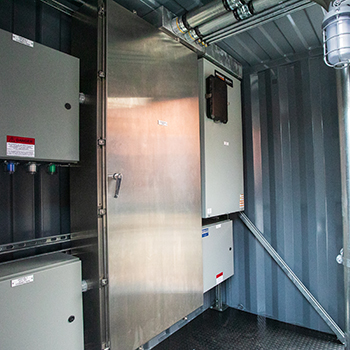

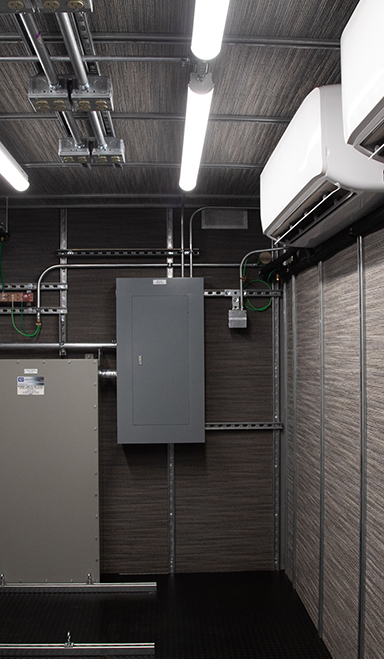

Power, from shore or from our own Sentinel Power Pod, is filtered and distributed to your exact requirements. The Sentinel Series is verified by test at up to 100 dB of RF attenuation and STC 50–55, both measured field results, while being almost completely impervious to physical intrusion. Test data is available on request.
The Sentinel Series isn’t constrained by 8 ft standard ISO container widths. Our Sentinels can be scaled by connecting two or more units side by side, all while maintaining an STC 55 rating and 100 dB of RF attenuation.
Typical delivery and deployment of a 20 ft Sentinel Series ISO container is approximately 90–120 days from an approved design, assuming site readiness and normal procurement conditions.
Containerized · The figures
What the Sentinel Series figures say
Built from
20 or 40 ft
ISO containers
-
ICD/ICS 705
compliant secure facilities
Up to
100 dB
Sentinel Series RF attenuation, verified by test
Verified by test
STC 50–55
Sentinel Series sound transmission class, measured field results
Approximately
90–120 days
Typical delivery and deployment of a 20 ft Sentinel Series ISO container from an approved design, assuming site readiness and normal procurement conditions
Figures as published on this site. Test data is available on request.
Containerized · Testing
RF and acoustic testing
RF shielding effectiveness testing to the IEEE 299 frequency ranges
| IEEE 299 range | Frequencies |
|---|---|
| Low range | 9 kHz–20 MHz |
| Resonant range | 20 MHz–300 MHz |
| High range | 300 MHz–18 GHz |
Sound transmission class, Sentinel Series
| Product line | STC rating |
|---|---|
| Sentinel Series | 50–55 |
Choosing a build type
Traditionally built, modular or containerized
Centurion provides all types of SCIF builds, so we are uniquely qualified to set the right expectations whether you are pursuing a traditionally built SCIF, a modular SCIF or a containerized unit.
Modular builds have historically reached accreditation ready as much as 75% faster than traditionally built facilities.
That said, not all SCIF questions are answered by the modular approach. Our team can help work through which one fits your site and your mission on a short call.
Both series · Hardening

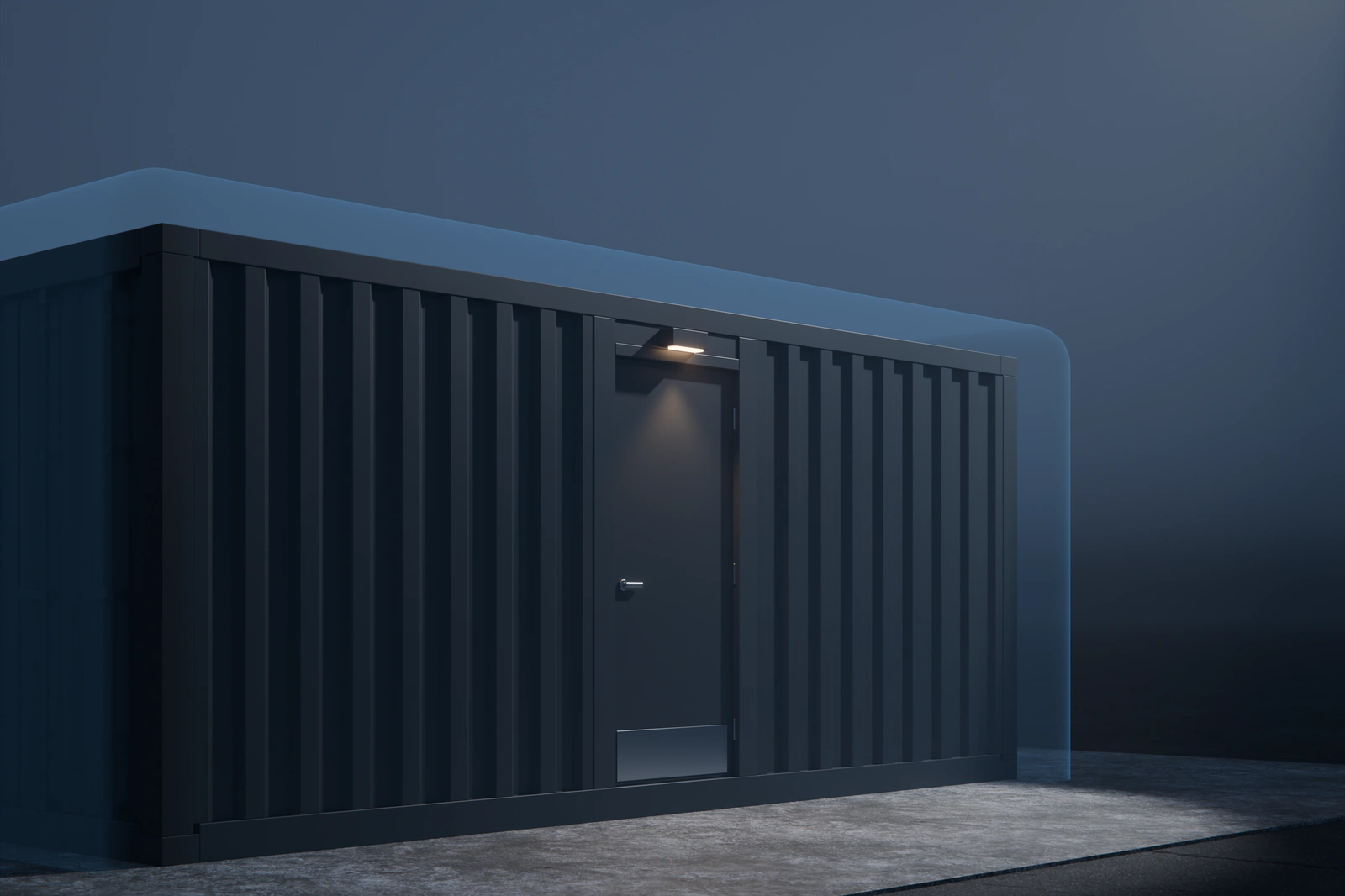

TEMPEST as standard, and options for the missions that need them
TEMPEST, standard on both series
TEMPEST is a standard feature of both the Vault Series and the Sentinel Series, with shielding tested per IEEE 299.
Optional HEMP/EMI hardening
HEMP/EMI hardening is an optional upgrade, available where the mission requires it and not required for a standard ICD 705 SCIF. Where HEMP is required, it is built to MIL-STD-188-125-1 for fixed facilities or MIL-STD-188-125-2 for transportable ones.
Relocation and re-accreditation
If your mission changes location, your secure space travels with you, with re-certification and re-accreditation services and reports.
Next step
Start the panel layout
A footprint, an ISO container on a pad, or a facility that has to pass validation. The panel is the unit, so the layout is where the conversation starts.
